Long Flex Performance Anti Flex Fatigue Coil Spiral Cable

Dongguan Tongheng Electronics Co., Ltd.
Contact Now

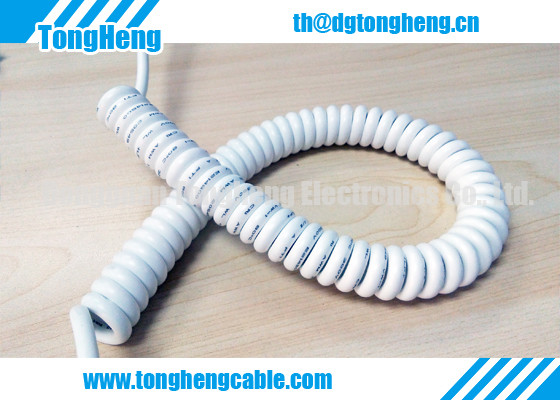

Long Flex Performance Anti Flex Fatigue Coil Spiral Cable

Brand Name : Spiral Cable

Model Number : spiral-cable-009

Certification : UL, CUL, CSA, AWM, CE

Place of Origin : Dongguan, China

MOQ : 200 PCS

Price : USD0.25~0.55 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800,000pcs per month

Delivery Time : 10 days for ready goods

Packaging Details : 200pcs per carton box

Category : Coil spiral cable

Feature : Anti Flex Fatigue

Rated Temperature : 105C degrees

Rated Voltage : 300V

Dimensions : To be customized per request

Standard : RoHS Compliant

Performance : Long Flex Life

RoHS, Reach : Compliant

Contact Now

Long Flex Performance Anti Flex Fatigue Coil Spiral Cable

Spiral cable provides great solution for application under narrow space condition. Tongheng company staff works hard to catch up with the most advanced technology and creates the best quality spiral cable.

Here below is the product properties:

Manufactured by: China cable factory

Conductor quantity: 2C to 50C

Conductor: oxygen free copper wires

100% RoHS compliant

Product parameters:

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.23 0.80 ≥65 0.76 3.80 381.00
2C 7/0.127 0.23 0.90 ≥65 0.76 4.00 239.00
2C 7/0.16 0.23 1.00 ≥65 0.76 4.10 150.00
2C 11/0.16 0.23 1.10 ≥65 0.76 4.20 94.20
2C 17/0.16 0.23 1.30 ≥65 0.76 4.60 59.40
2C 21/0.178 0.23 1.50 ≥65 0.76 5.00 36.70
2C 34/0.178 0.23 1.80 ≥65 0.76 5.60 23.20
2C 26/0.25 0.23 2.00 ≥65 0.76 7.80 14.60
3C 7/0.100 0.23 0.80 ≥65 0.76 4.00 381.00
3C 7/0.127 0.23 0.90 ≥65 0.76 4.20 239.00
3C 7/0.16 0.23 1.00 ≥65 0.76 4.40 150.00
3C 11/0.16 0.23 1.10 ≥65 0.76 4.60 94.20
3C 17/0.16 0.23 1.30 ≥65 0.76 5.20 59.40
3C 21/0.178 0.23 1.50 ≥65 0.76 5.50 36.70
3C 34/0.178 0.23 1.80 ≥65 0.76 6.10 23.20
4C 7/0.100 0.23 0.80 ≥65 0.76 4.20 381.00
4C 7/0.127 0.23 0.90 ≥65 0.76 4.40 239.00
4C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
4C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
4C 17/0.16 0.23 1.30 ≥65 0.76 5.40 59.40
4C 21/0.178 0.23 1.50 ≥65 0.76 5.90 36.70
5C 7/0.100 0.23 0.80 ≥65 0.76 4.40 381.00
5C 7/0.127 0.23 0.90 ≥65 0.76 4.60 239.00
5C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
5C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
5C 17/0.16 0.23 1.30 ≥65 0.76 5.70 59.40
6C 7/0.100 0.23 0.80 ≥65 0.76 4.60 381.00
6C 7/0.127 0.23 0.90 ≥65 0.76 5.00 239.00
6C 7/0.16 0.23 1.00 ≥65 0.76 5.40 150.00
6C 11/0.16 0.23 1.10 ≥65 0.76 5.70 94.20
